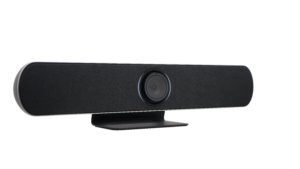

NTVM1000 Video Bar

NTVM1000 Video Bar 4K UHD All-In-One Camera



Spec Sheet

User Guide


  1. Video Bar All-in-One Camera
  2. Power Adapter
  3. IR Remote Control


  • 4K UHD, 1080P60
  • MPT + EPTZ
  • Built-in Microphone & Speaker
  •  HDMI 2.0, USB Type C, JR45
  • 120˚ Wide Angle
  • Auto-framing & Auto-tracking

The NTVM1000 is specially designed for home office users or small to medium-sized meeting/huddlerooms with 4 to 6 people. Its All-in-One three-in-one design of 4K ultra HD camera, beamforming microphone and full-frequency loudspeaker reduces wiring and makes video communication really simple. Out of the box it’s going to take you a minute to set up – it really is plug and play!

With 4K ultra high resolution clear image (and downward compatible with 1080P, 720P and other resolutions), it can meet the needs of users for different video experiences, and can provide clear, real, smooth and accurate communication. Its wide field of view (FoV) with five times zoom, optical lens customized for the conference, the built-in electronic head means you have no need to worry about the camera position. The Beam Forming (BF) microphone is built in with a pickup distance of 6 metres. A low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker combined with full duplex means better sound and clearer communication providing a fuller and more authentic conference.

The NTVM1000 is a camera with a built-in intelligent analysis algorithm, listening to the speaker position, automatic framing of participants, automatic tracking of speakers and switching the speaker screen, to ensure that the speaker is always clearly in the picture. To make sure you have all options covered, it provides both HDMI and USB audio and video output simultaneously.


Video System 4K@60fps, 4K@30fps, 1080P@60fps, 1080P@30fps, 720P@60fps, 720P@30fps
Sensor 1/2.5 inch, CMOS, 8.51M pixel
Lens 120°(DFOV), 110°(HFOV), 5x zoom, pan/tilt ±15°
Digital Noise Reduction 2D & 3D digital noise reduction
Video S/N ≥55dB
Backlight Compensation Supported
Full frequency speaker 96 dB SPL at 0.5 metres
Microphone array Beamforming microphone, pick up distance up to 6 metres
USB Features
Connection type USB 3.0, downward compatible with USB2.0
Video Compression H.264 /MJPEG /YUY2 /NV12
USB audio 32K sampling rate, support UAC2.0
USB video communication protocol UVC 1.1~1.5
UVC PTZ control Supported
System compatibility
OS Windows 7 (only 1080p and below), Windows 8.1, Windows 10 or higher

macOS® 10.10 or higher

Google ChromebookTM Version 29.0.1547.70 or higher

Linux (requires support for UVC)


Hardware platform 2.4 GHz Intel® Core 2TM Duo processor or higher
2 GB of memory or higher
USB 2.0 interface (4K video output need USB 3.0 interface)
Input/output interface
HD output 1 * HDMI, version 2.0
USB interface 1 * USB3.0, Type C; 1 * USB2.0, Type A
Power jack DC 12V, 2A (MAX)
Control mode 2.4G remote controller
Installation mode Support for desktop, wall, TV and other installation options
Standard cable USB3.0 (2 metres)
Safety protection Security lock jack
Generic Specification
Remote 2.4G remote controller
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 60°C
MTBF >30000h
Size 600mm * 140mm * 115mm (holder included)
Net Weight 2.5 Kg
Certification CCC, CE, RoHS, FCC, etc.
Client applications Skype for Business, Compatible with Cisco (Jabber), Cortana etc
Applications LCP (Zoom, BlueJeans, Broadsoft, Starleaf, Pexip, Vidyo) and all UVC application (Google Hangouts, Go to Meeting, etc)
SKU Number NTV-M1000-BK-G
