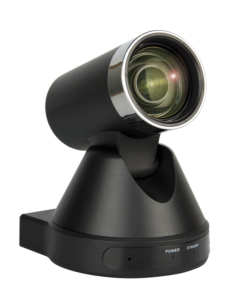

NTV71H PTZ Camera
NTV71H HDMI PTZ Camera
Features:
- HD 1080P
- HDMI & IP output
- 12X zoom
- 72.5˚ FoV
- RCU
- RS232
The NTV71H is a 1080p camera with 12X optical zoom and a 72.5° field of view for capturing both wide angles and for zooming into the subject showing fantastic detail. With support for HDMI & IP Streaming (H.264) these cameras are ideal for broadcasting live high definition video signals or being utilised in video conferencing applications.
The camera can be wall or ceiling mounted with both vertical and horizontal flip capability and come in black or white to fit the colour scheme of the room. These cameras are suitable for small, medium or large room set-ups.
Specifications |
|
|---|---|
| Video System | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| Sensor | 1/2.7”, CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 32x (optional) |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 72.5° ~ 6.9° |
| Vertical Angle of View | 44.8° ~ 3.9° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +30° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Supported |
| Image Freeze | Supported |
| Number of Presets | 255 |
| Preset Accuracy | 0.1° |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In |
| Communication Interface | 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1 x RS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1 x RS485: Share with RS232 Out, Max Distance: 1200m, Protocol: VISCA/Pelco-D/ Pelco-P |
| Power Jack | JEITA type (DC IN 12V) |
| Input Voltage | DC 12V |
| Current Consumption | 1.0A (Max) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 12W (Max) |
| MTBF | >30000h |
| Size | 128.5x118x156.2mm |
| Net Weight | 0.91Kg |
| SKU Number | NTV-71H-BK-G |
